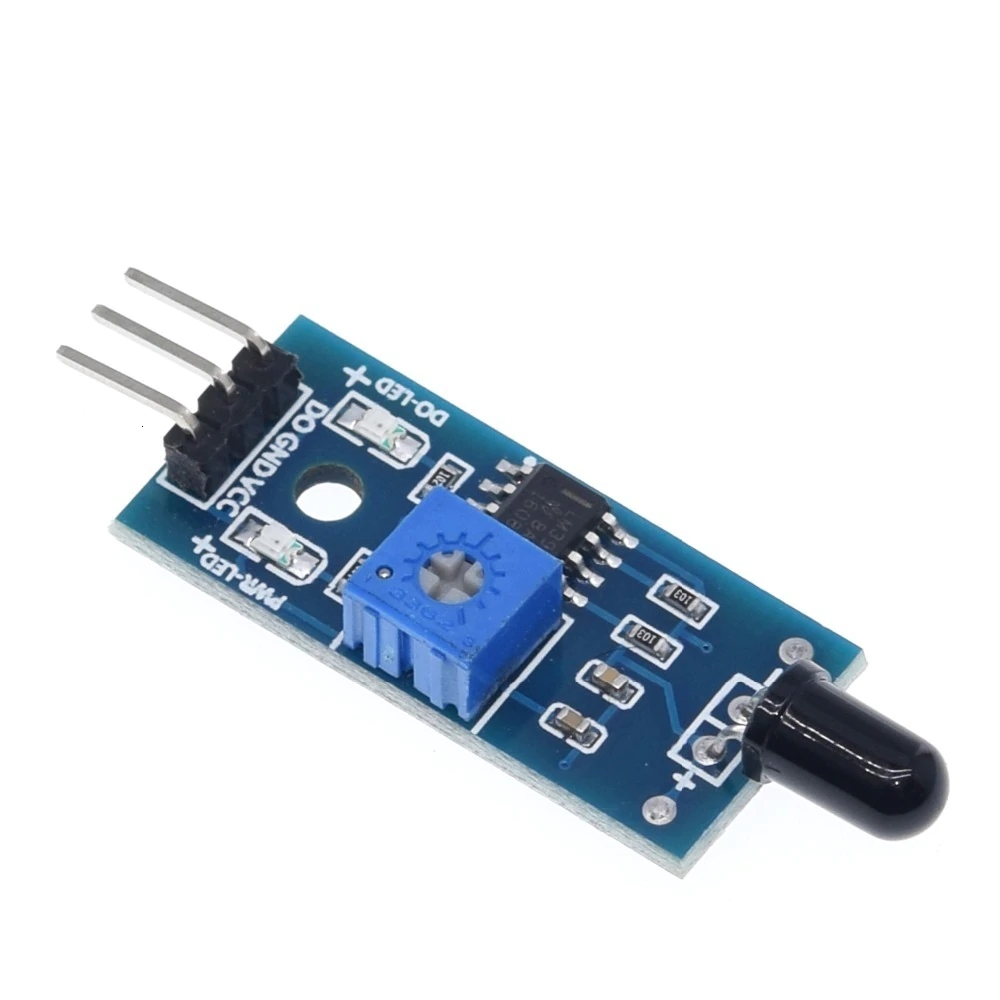

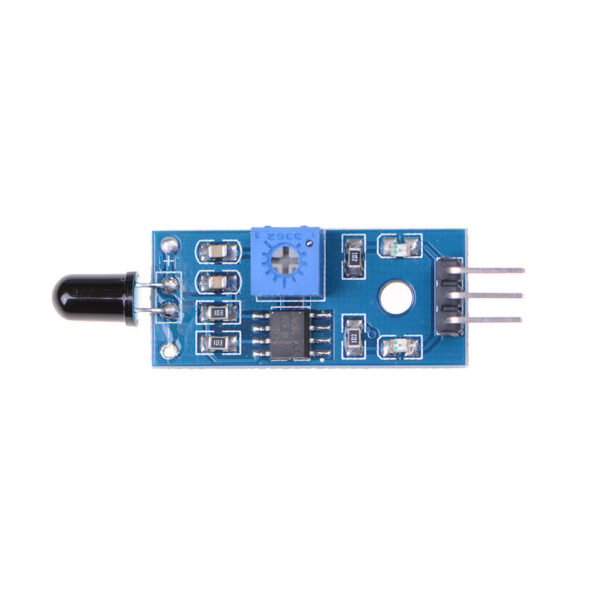

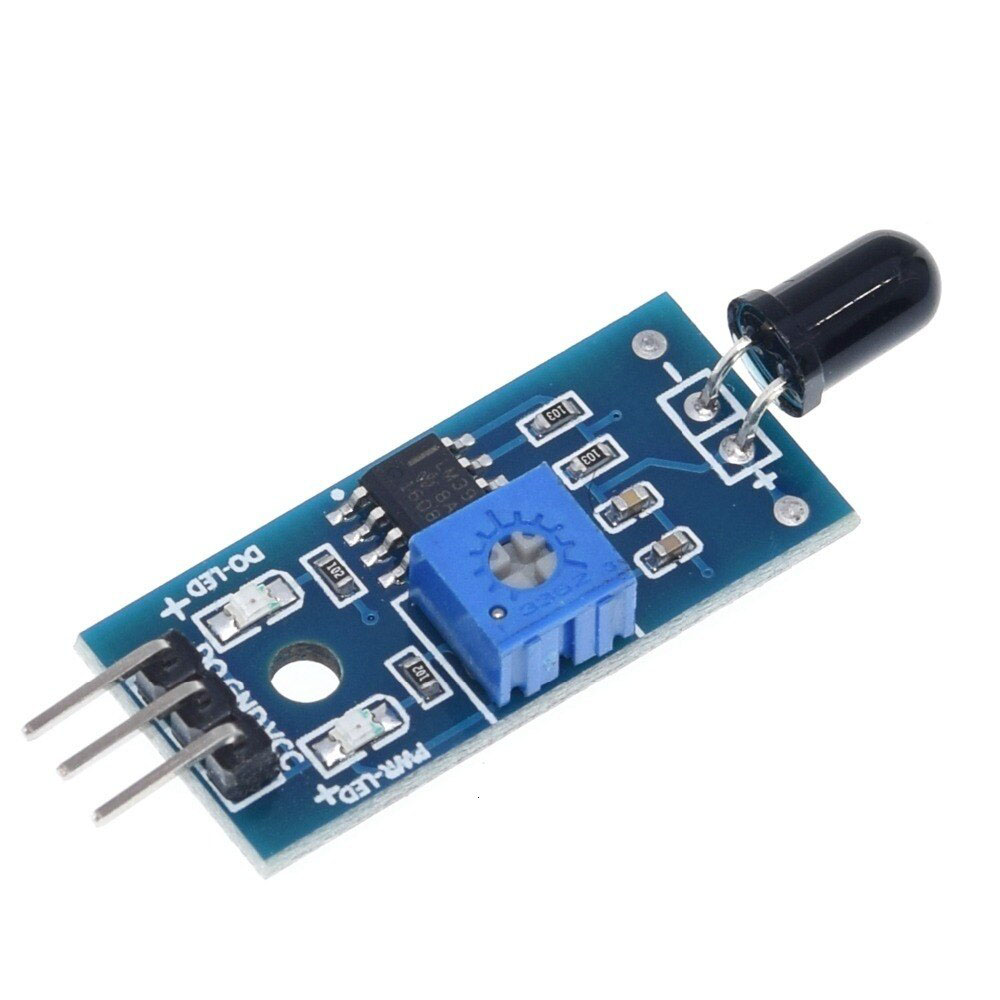

IR Infrared Flame Detection Sensor


Category: Tags: ,


IR Infrared Flame Detection Arduino Sensor

  • Detects a flame or a light source of a wavelength in the range of
  • 760nm-1100 nm
  • Detection distance: 20cm (4.8V) ~ 100cm (1V)
  • Detection angle about 60 degrees, it is sensitive to the flame spectrum.
  • Comparator chip LM393 makes module readings stable.
  • Adjustable detection range.
  • Operating voltage 3.3V-5V
  • Digital and Analog Output
    • DO digital switch outputs (0 and 1)
    • AO analogue voltage output
  • Power indicator and digital switch output indicator
